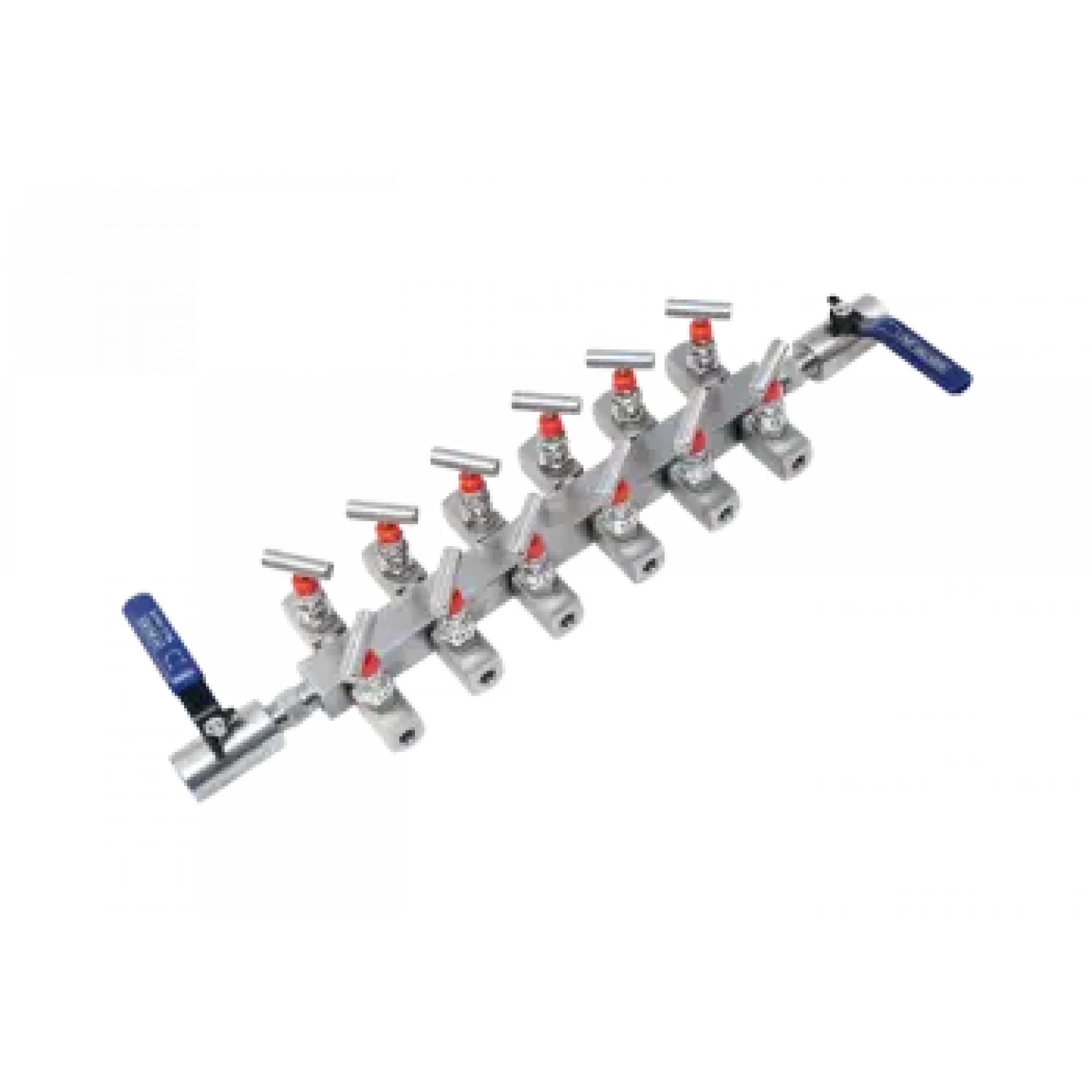

Air Header Manifold

Air Header Manifold

One inlet with several outlet points can make an instrumentation arrangement easier to organise, but the number of ports, connection sizes and mounting method need to match the actual requirement. We manufacture and supply Air Header Manifolds in Ahmedabad with 2 to 20 outlet ports, including customizable port arrangements. Different inlet and outlet connections, materials and mounting options are available so customers can discuss a configuration based on their system rather than working with one fixed design.

Multiple Outlet Options in One Manifold

Our Air Header Manifold range is available with inlet connection sizes from 1/2″ to 2″. NPT, BSP, BSPT and Flanged inlet options are offered. Outlet connections are available from 1/4″ to 1/2″ with NPT, BSP and BSPT options.

The number of outlet ports can range from 2 to 20 and can be customized according to the stated requirement. Base Mount and Wall Mount arrangements with brackets are available. These options allow buyers to specify the manifold around the required number of outlet points and installation arrangement.

Technical Specifications

Inlet Connection Size1/2″ to 2″ – NPT / BSP / BSPT / Flanged
Outlet Connection Size1/4″ to 1/2″ – NPT / BSP / BSPT
Number of Outlet Ports2 to 20 Ports (Customizable)
Materials of ConstructionStainless Steel (SS304, SS316), Carbon Steel (Optional)
Maximum Operating Pressure15 Kg/Cm² (Higher Pressure on Request)
Flow CoefficientStandard Industrial Flow
Seat MaterialPTFE / Grafoil
Mounting OptionsBase Mount / Wall Mount with Brackets
Testing100% Factory Tested Before Dispatch

Configuration Based on Working Requirement

SS304 and SS316 are available as standard material choices, while Carbon Steel is optional. PTFE and Grafoil seat materials are offered. The stated maximum operating pressure is 15 Kg/Cm², with higher-pressure requirements available on request. The product specification also states standard industrial flow for the flow coefficient.

With more than 20 years of experience in industrial and instrumentation products, we know that port quantity alone isn't enough for selecting an Air Header Manifold. Inlet size, outlet size, material, pressure and mounting arrangement should also be considered. Each manifold is 100% factory tested before dispatch according to the supplied product details.

If you're looking for Air Header Manifold manufacturers in Ahmedabad, share your required inlet and outlet sizes, number of ports, material, working pressure, mounting method and quantity. We'll review your details against our available range and discuss customization where required. Send us your enquiry for product details and quotation.
