Air Helder Details

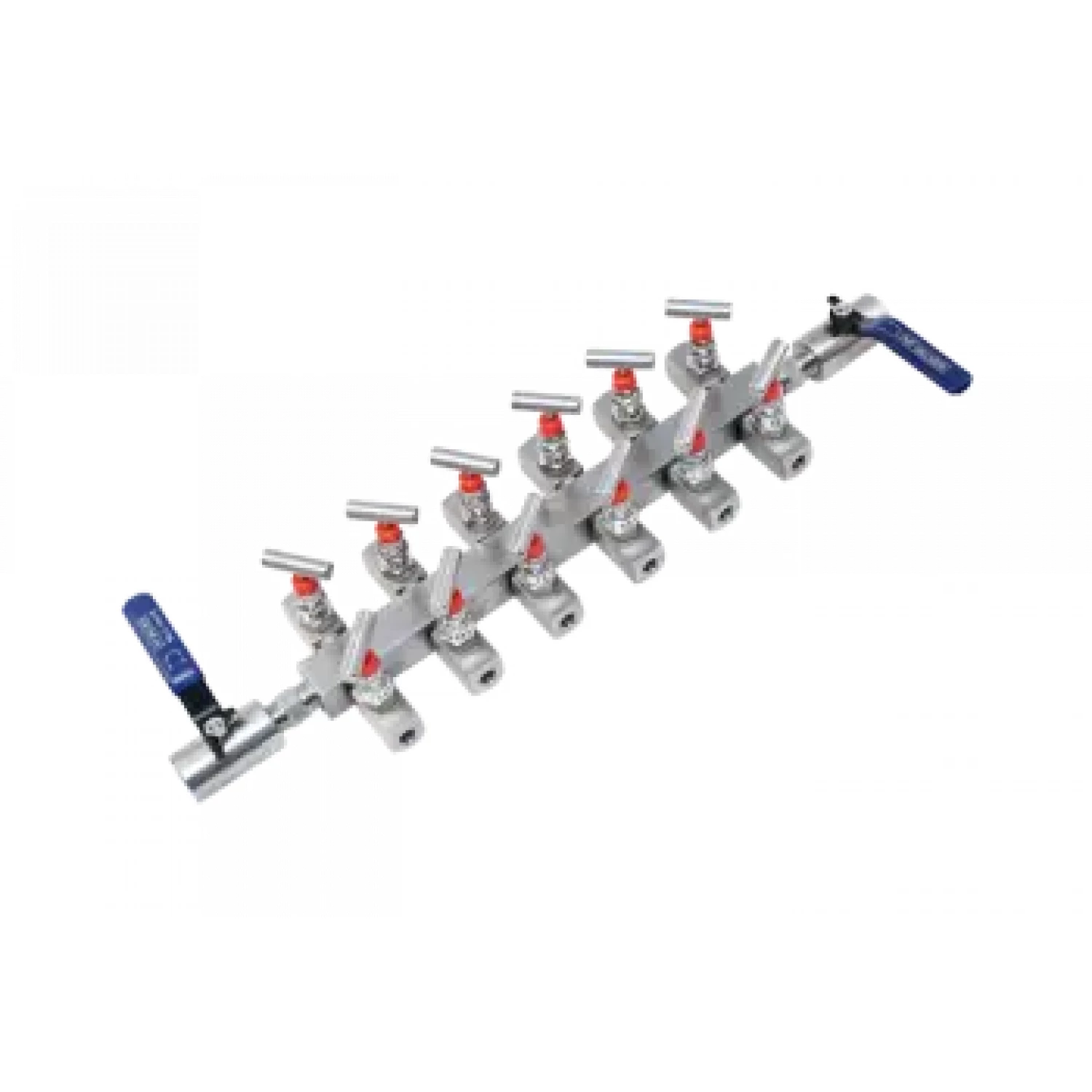

Where one inlet needs to be arranged with several outlet points, the number of ways, connection type and working conditions need to be checked carefully. We manufacture and supply Air Headers in Ahmedabad with 6-way, 10-way, 12-way and 16-way configurations. The available range covers different inlet and outlet sizes, material choices and packing options, allowing the product to be selected according to the required setup rather than using one fixed configuration.

Configuration, Connections & Material Options

Our Air Header range is available with 1/2” inlet x 1/2” outlet and 3/4” inlet x 3/4” outlet sizes. End connection options include NPT, BSPT and SW. Customers can select from the available 6-way, 10-way, 12-way and 16-way arrangements based on their requirement.

Material options include SS 316, SS 304 and CS. PTFE and Grafoil packing options are available for different temperature requirements. Optional valves for sour gas service are also available conforming to NACE Std. MR-01-75, as provided in the product specification. These choices help customers discuss the required Air Header configuration with our team before finalising an order.

Technical Specification

SizeInlet 1/2” x Outlet 1/2”
SizeInlet 3/4” x Outlet 3/4”
End ConnectionsNPT, BSPT, SW (6-Way, 10-Way, 12-Way, 16-Way)
Working Pressure6000 psi [413 bar]
Temperature RatingPTFE 450°F [232°C] / Grafoil 700°F [371°C]
MaterialSS 316, SS 304, CS. Optional sour gas service valves are available conforming to NACE Std. MR-01-75.
PackingPTFE, Grafoil
TestingAll valves are 100% factory tested prior to shipment.

Working Conditions Matter in Selection

The available Air Header has a working pressure of 6000 psi [413 bar]. Temperature ratings differ according to the selected packing: PTFE is rated at 450°F [232°C], while Grafoil is rated at 700°F [371°C]. This makes packing selection an important point when discussing the required configuration.

With more than 20 years of experience in this field, we understand that buyers need clear technical information before placing an order. All valves are 100% factory tested before shipment as stated in our product specification.

If you're looking for Air Header manufacturers in Ahmedabad, share the required number of ways, inlet and outlet size, connection, material, packing, quantity and working conditions with us. We'll review your details against our available configurations and help you discuss the suitable option. Send your requirement to our team for product details and quotation.
