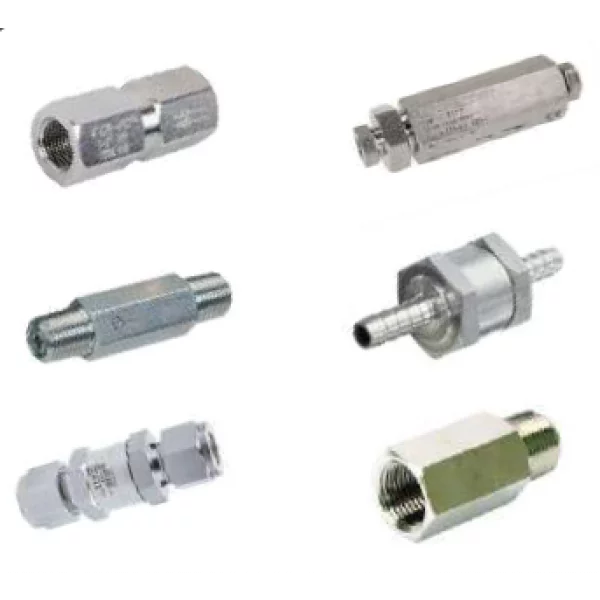

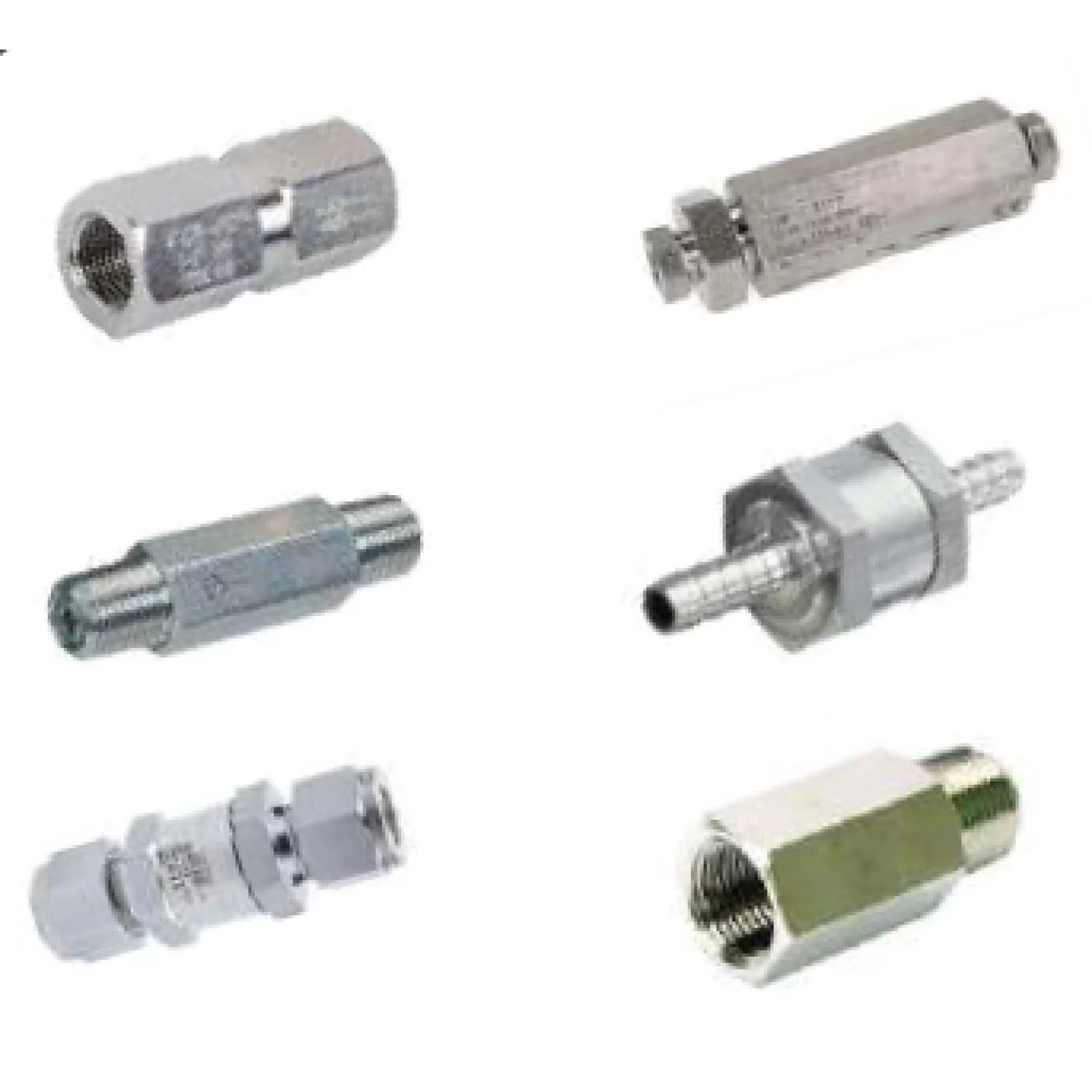

Check Valves Details

A Check Valve is generally selected when flow needs to move in the required direction while reverse flow needs to be restricted. The working pressure, seat arrangement, body construction and connection type can all affect the final selection. We manufacture and supply Check Valves in Ahmedabad in a straight pattern with Single Piece and Two Piece designs. Our available range covers different pressure, thread, seating and material requirements, giving industrial buyers options based on their actual system needs.

Design & Seating Options for Different Requirements

Our Check Valves are manufactured from Bar Stock and Forged Steel. We offer SS, CS and other materials according to customer requirements. The standard seating arrangement is Metal to Metal, while a Soft Seat is available as an optional choice. For the soft seat arrangement, an ‘O’ ring in Viton is offered as per the available product specification.

Connection options include BSP, NPT and BSPT threads. Other thread requirements can also be discussed on request. The available size range is from 1/4” to 2”. These choices allow customers to select the valve according to their required connection, body design, seating and material rather than depending on one fixed configuration.

Technical Specification

PatternStraight
DesignSingle Piece Design & Two Piece Design
RatingUp to 50,000 psi
ConnectionsBSP, NPT, BSPT & Other Thread on Request
StandardMetal to Metal & Soft Seat (Optional)
Soft Seat‘O’ Ring Viton
Size1/4” to 2”
Body StockBar Stock & Forged Steel
MaterialSS, CS and Other Material as per Requirement

Selection Based on Pressure & Connection

Pressure requirement needs proper attention when selecting a Check Valve. Our available range has ratings up to 50,000 psi as stated in the product specification. The suitable configuration should be selected after considering the required pressure along with material, size, thread connection, body design and seat type.

With more than 20 years of experience in valve manufacturing, we follow a practical production approach. Our team monitors different manufacturing stages and checks the finished product before dispatch. We don't treat every enquiry as the same because operating and connection requirements can differ considerably.

If you're searching for Check Valve manufacturers in Ahmedabad, share your required size, pressure rating, material, connection, seat type, design and quantity with us. We'll review the details against our available Check Valve range and discuss the suitable configuration. Send your requirement to our team for product details and quotation.

Related Products

Needle Valves

Flow control at an instrument line can require fine adjustment rather than only a simple open or close action. We manufa... Continue

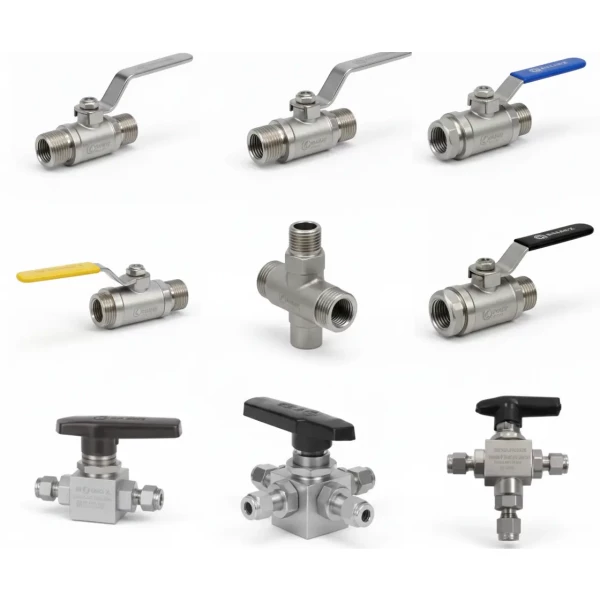

Ball Valves

Different piping and instrumentation arrangements call for different valve body designs, pressure ratings and thread con... Continue

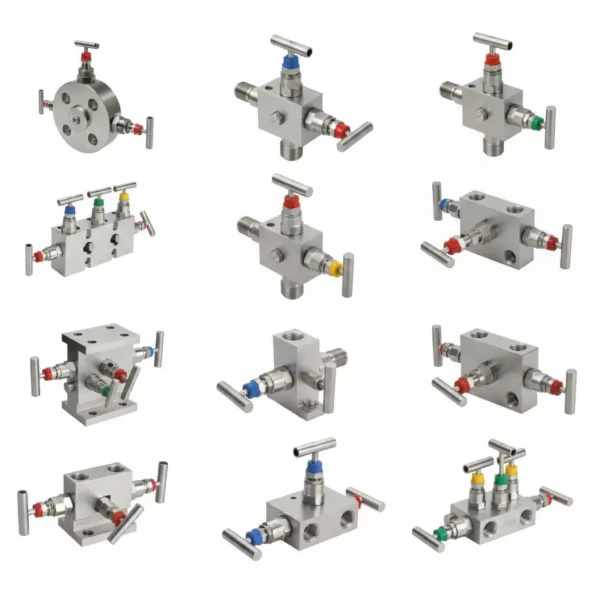

Monifold Valves

When several flow paths need to be managed through one valve arrangement, the configuration of the manifold becomes an i... Continue

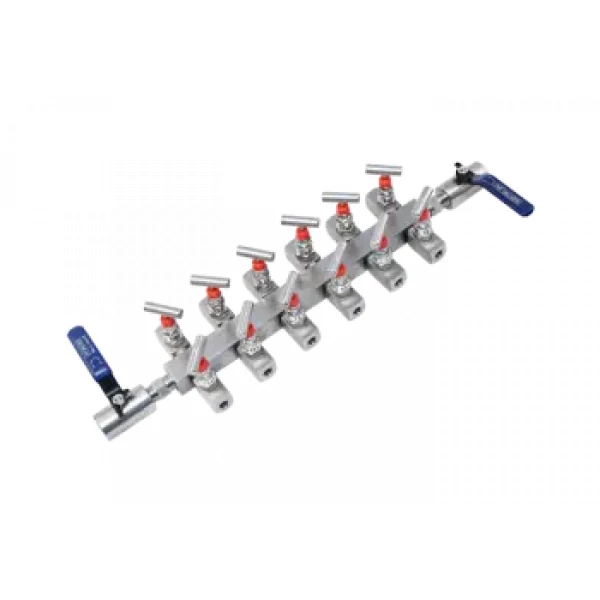

Air Helder

Where one inlet needs to be arranged with several outlet points, the number of ways, connection type and working conditi... Continue

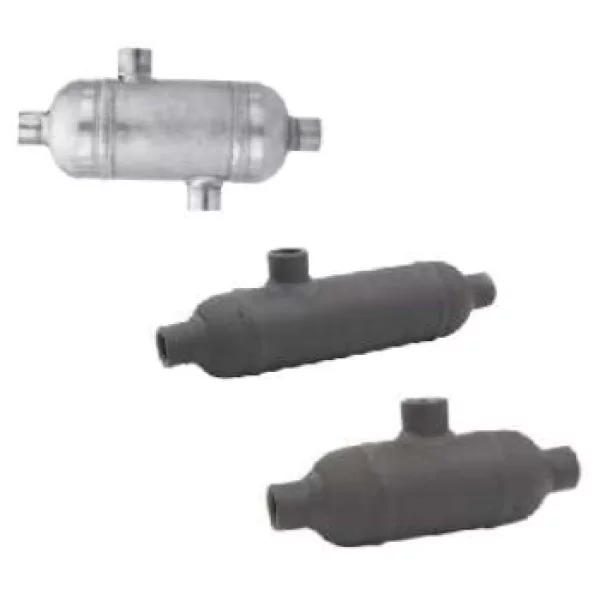

Condensate

Condensate products can have different pipe sizes, lengths, body pipe schedules and connection requirements, so selectio... Continue

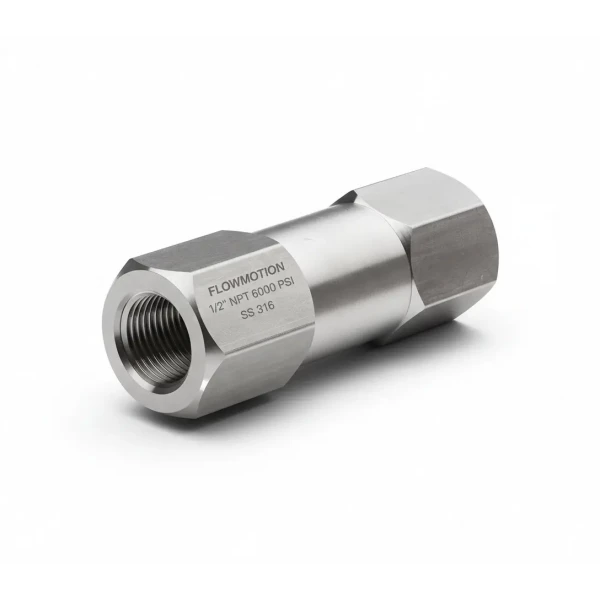

Check Valve (Non-Return Valve)
