Needle Valves

NEEDLE VALVES

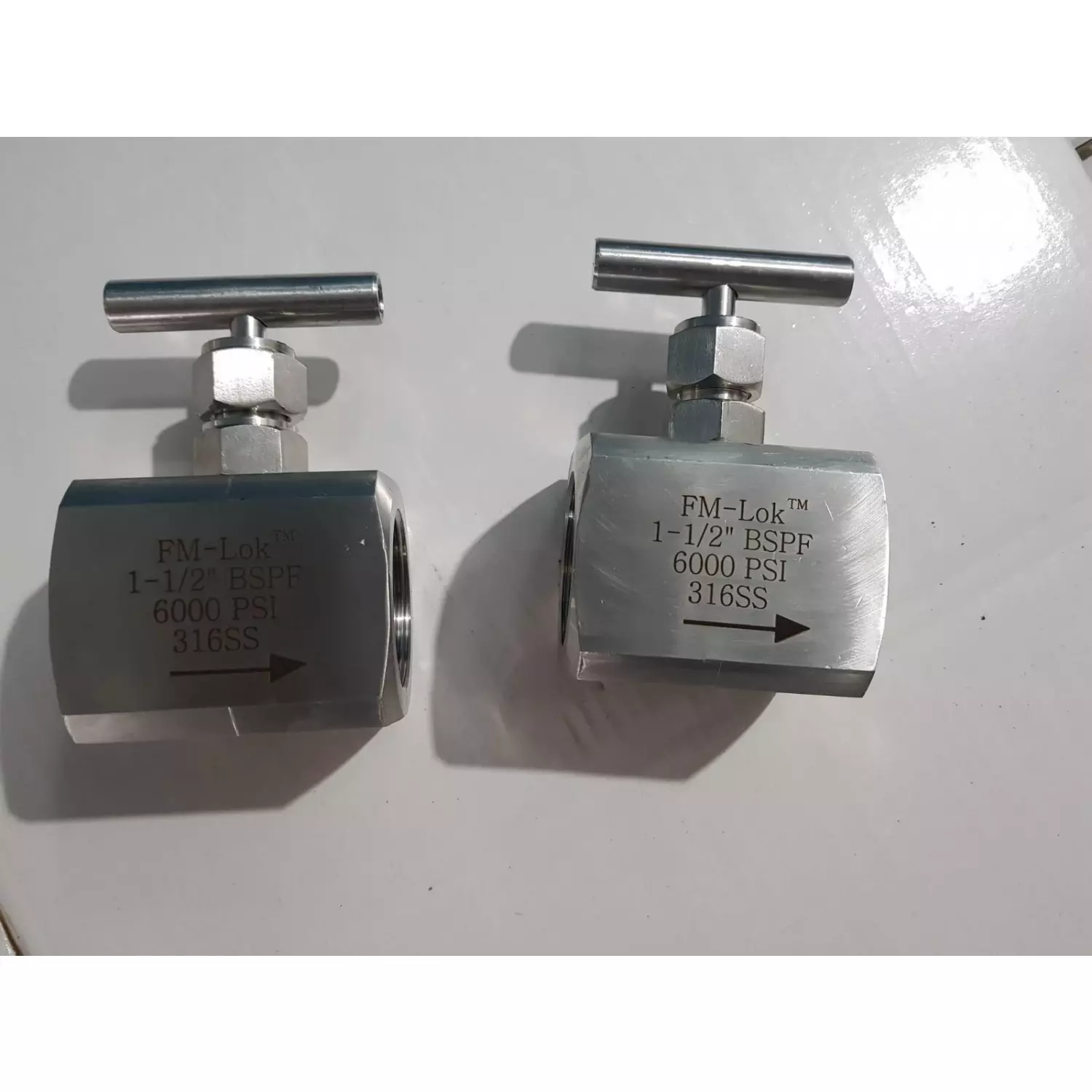

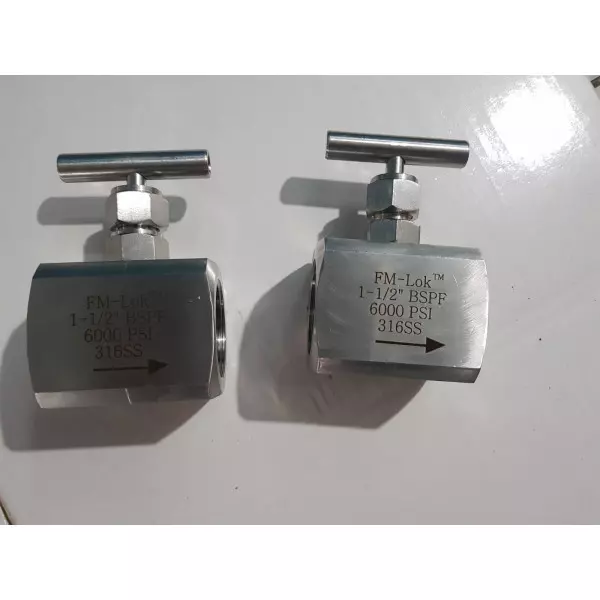

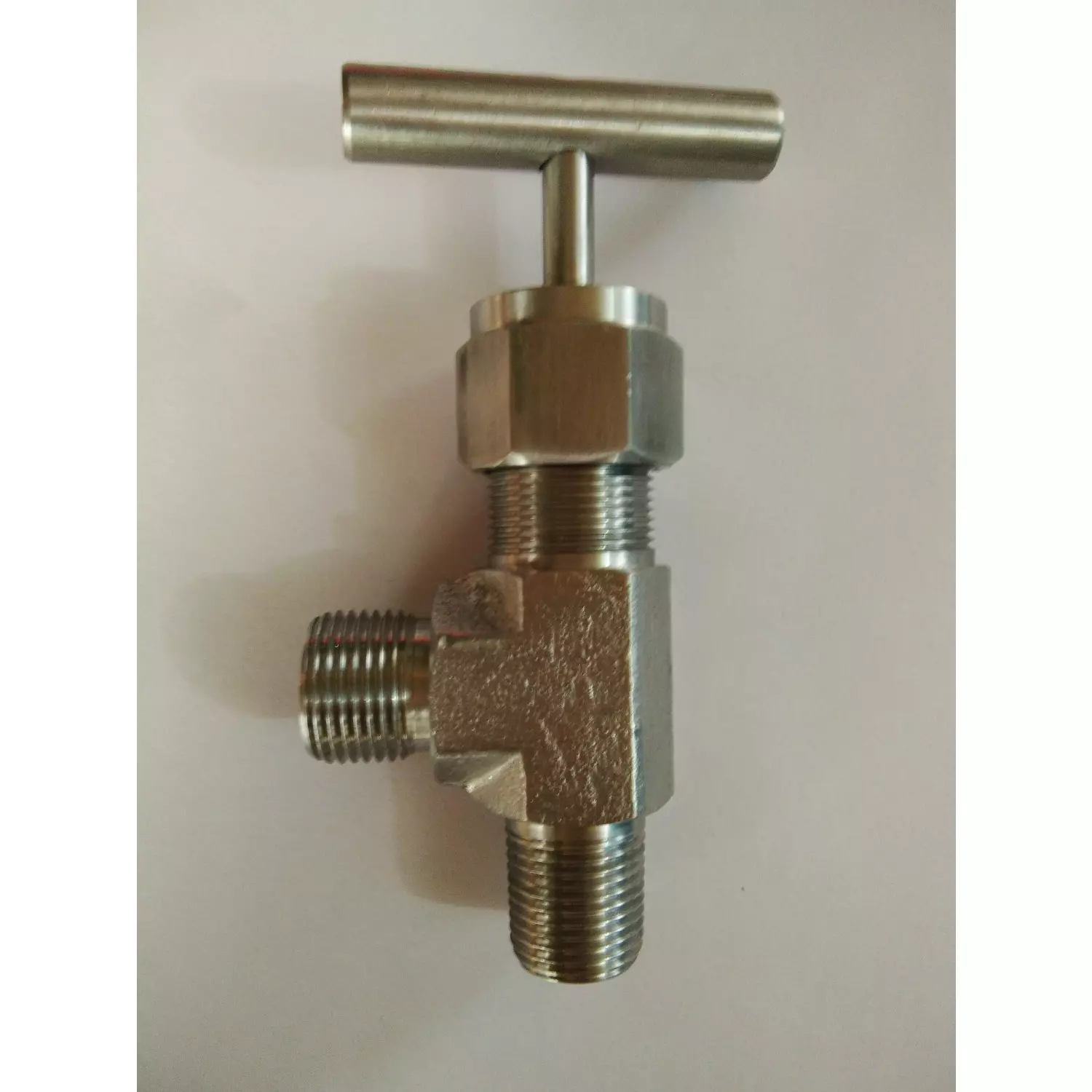

Flow control at an instrument line can require fine adjustment rather than only a simple open or close action. We manufacture and supply Needle Valves in Ahmedabad for such industrial and instrumentation requirements. Backed by more than 20 years of experience in valve manufacturing, we offer Screwed Bonnet Needle Valves in different sizes, connection options and materials. The design is available with a standard needle-type stem, while a non-rotating stem can also be offered as an optional requirement.

Built Around Different Connection & Material Needs

Our Needle Valves are manufactured from bar stock and are available in SS, CS and other materials on request. Different piping and instrumentation arrangements don't always use the same connection, so we offer NPT, BSP, BSPT, Socket Weld, Butt Welded and Flanged connection options. Available sizes range from 1/4” to 2”.

The standard valve comes with metal-to-metal seating, while a soft seat is available as an optional choice. Teflon and Grafoil packing options are offered, along with a removable handle. These choices allow customers to discuss the valve configuration according to their actual requirement instead of working with only one fixed arrangement.

Technical Specification

TypeScrewed Bonnet Needle Valve
RatingUp to 6000 psi @ up to 1200ºF
StemNeedle Type (Standard), Non-Rotating (Optional)
PackingTeflon & Grafoil
SeatStandard Metal to Metal & Soft Seat (Optional)
HandleRemovable
Size1/4” to 2”
ConnectionsNPT, BSP, BSPT, Socket Weld, Butt Welded & Flanged
Body StockBar Stock
MaterialSS, CS and Other Material on Request

Careful Manufacturing for Instrumentation Requirements

A Needle Valve may be a compact component, but manufacturing accuracy matters when the valve is used for controlled flow. We pay attention to material selection, machining and product checking during production. Our skilled team monitors the manufacturing process, and finished valves are checked before dispatch according to our required quality process.

Our available rating goes up to 6000 psi at temperatures up to 1200ºF, subject to the selected valve configuration and material requirement. Rather than assuming that one valve configuration suits every system, we prefer customers to share their operating and connection requirements before selection.

If you're looking for Needle Valve manufacturers in Ahmedabad, send us your required size, material, connection type, quantity and available application details. We'll review the information and discuss a suitable Needle Valve configuration from our available manufacturing range. Contact our team for product details and quotation.

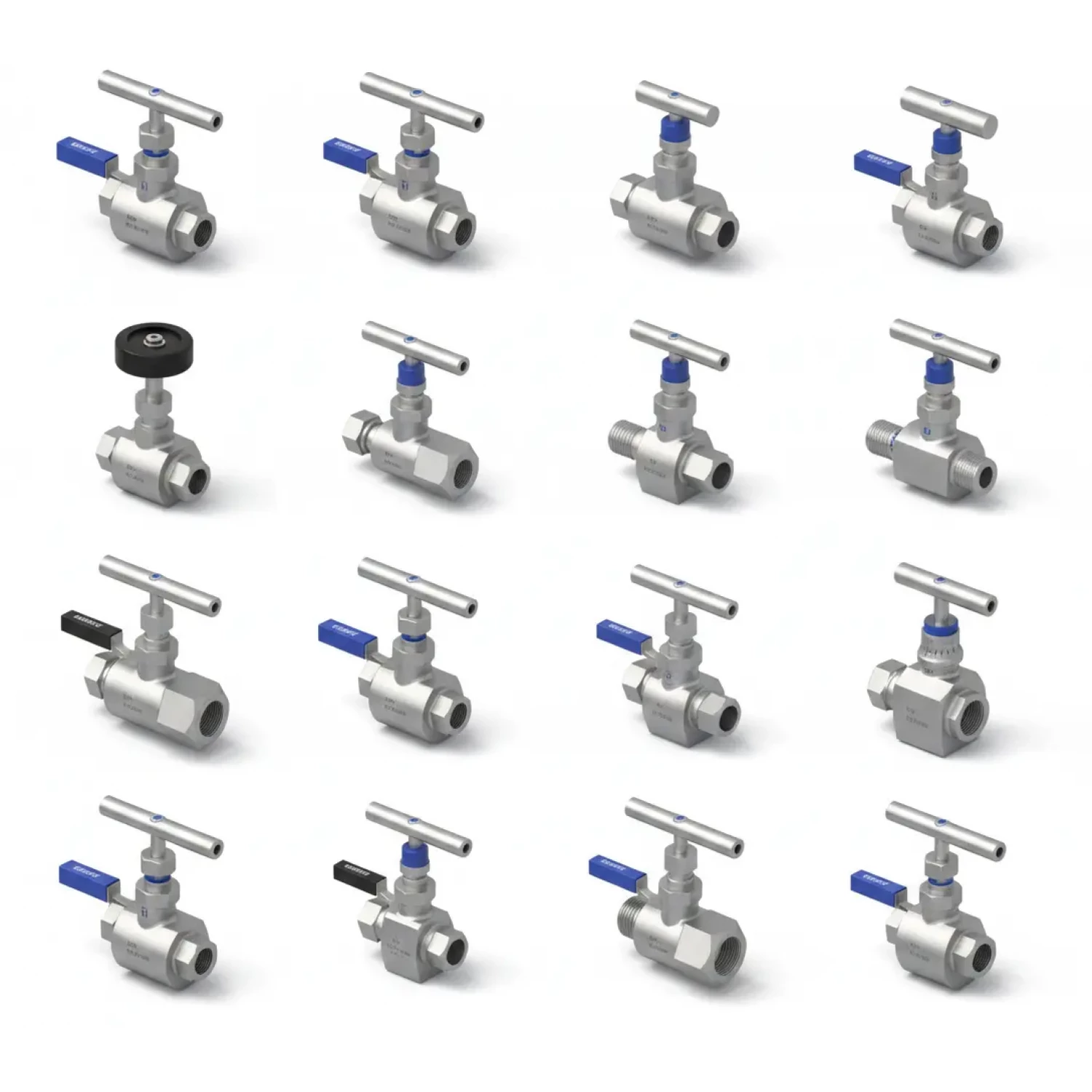

List of Needle Valves
