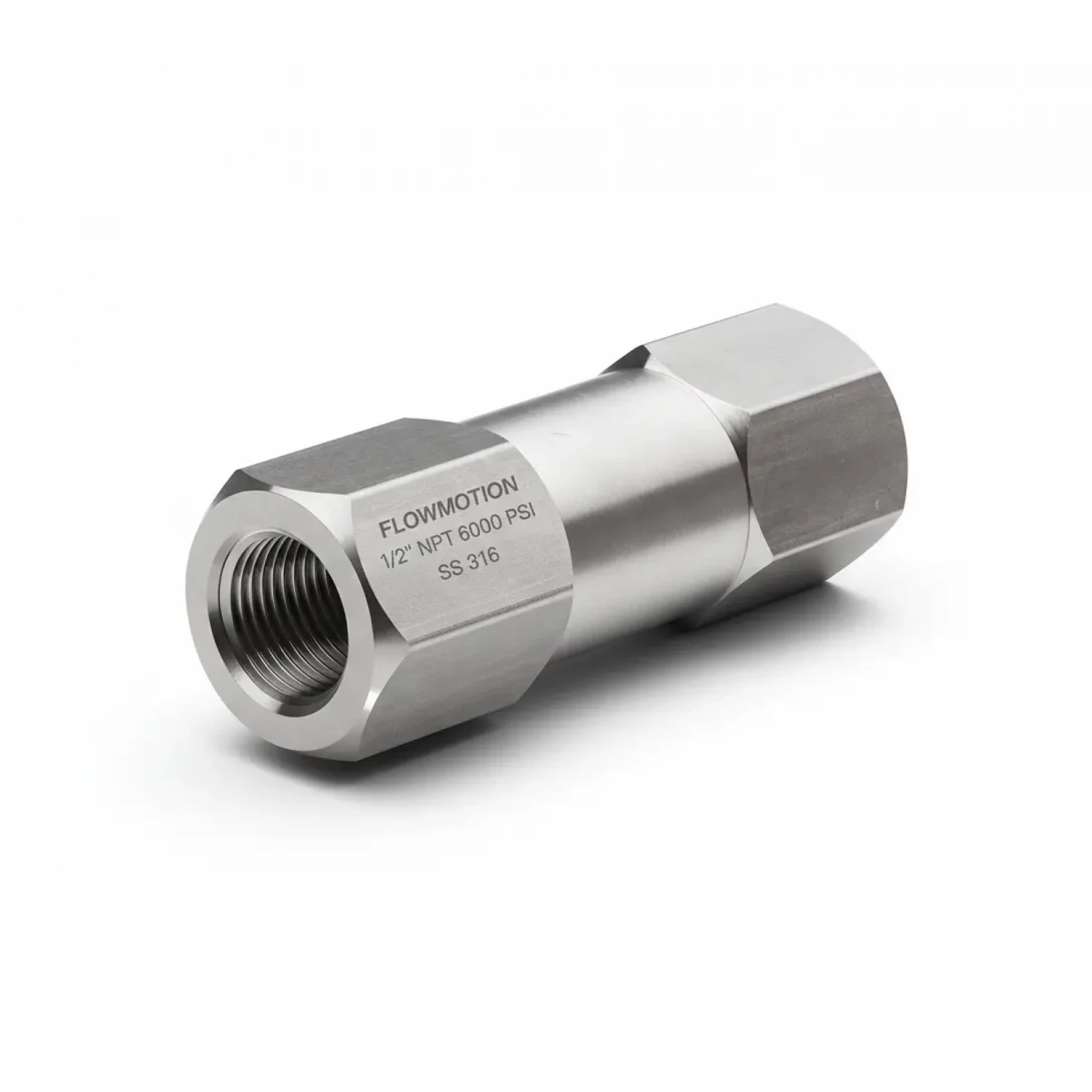

| Design Pattern | Straight Pattern |
|---|---|
| Design Type | Single Piece & Two Piece Design |
| Size Range | 1/4″ to 2″ |
| Body Material | Stainless Steel, Carbon Steel, Other Materials on Request |
| Maximum Operating Pressure | Up to 10,000 PSI |
| Seat Standard | Metal to Metal / Soft Seat (Optional) |
| Soft Seat Option | Viton ‘O’ Ring |
| End Connections | NPT, BSPT, BSPP, Tube Size & Other Threads on Request |
| Testing | 100% Factory Tested Before Dispatch |
