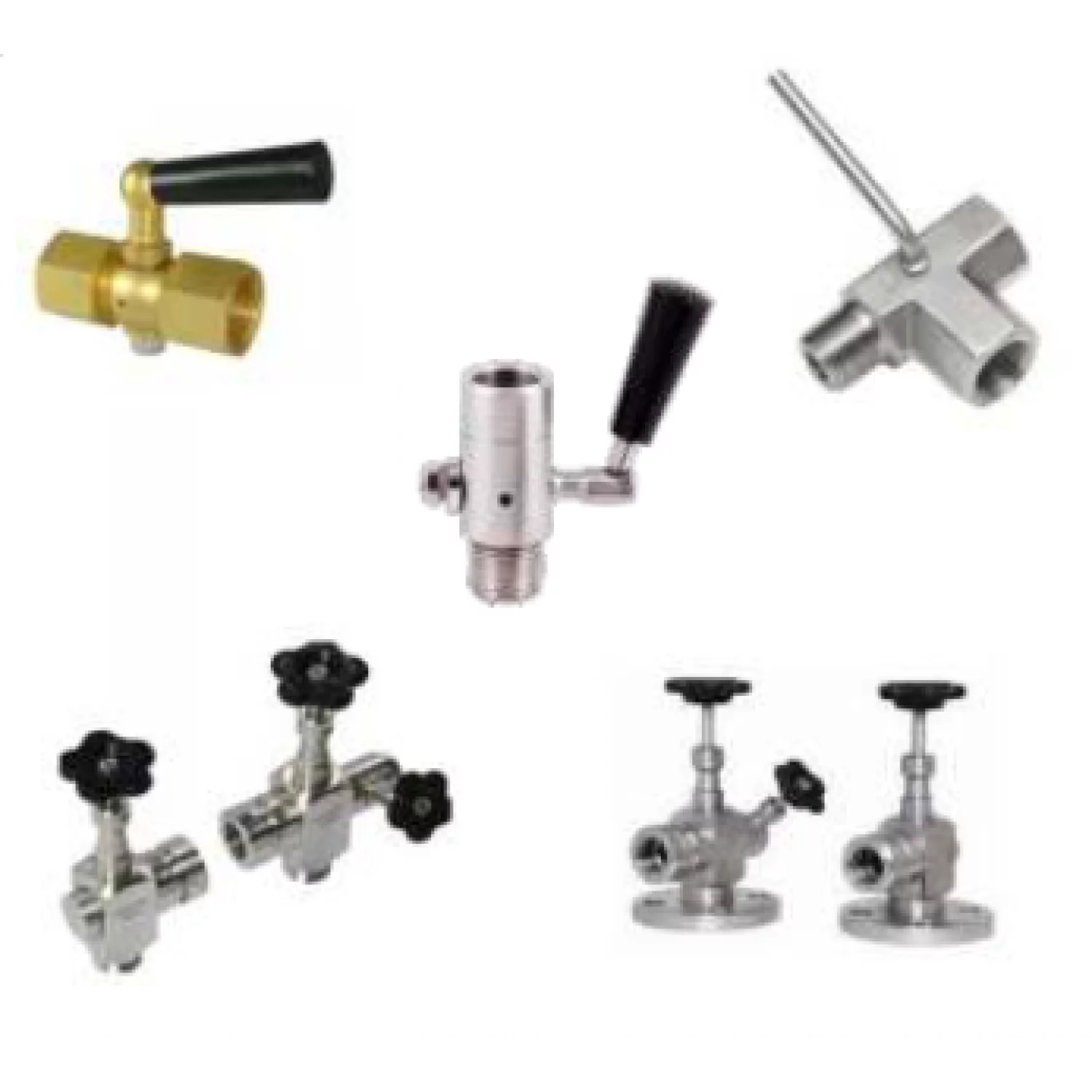

Gauge Cock Details

Connection arrangement can make a real difference when selecting a Gauge Cock for an instrumentation setup. The required thread, pressure range, material and 2-way or 3-way configuration need to be checked before finalising the product. We manufacture and supply Gauge Cocks in Ahmedabad with different construction materials and connection options. Both male and female arrangements are available, along with options with a vent hole, giving buyers a practical choice according to their actual requirement.

Material, Thread & Configuration Choices

Our Gauge Cock range is available in SS 304, SS 316, Brass and Carbon Steel. Other materials can also be discussed on request. Since material requirements aren't always the same for every installation, customers can specify the required construction while sending their enquiry.

Thread connection options include M20, 1/4”, 3/8” and 1/2” BSP and NPT, with other thread options available on request. We also offer 2-way and 3-way configurations. Both male and female connection arrangements can be supplied, while a vent hole is another available option. These variations help buyers choose the Gauge Cock according to their instrumentation setup rather than depending on one standard configuration.

Technical Specification

ConstructionSS 304, SS 316, Brass, Carbon Steel and Other Material on Request
Thread ConnectionM20, 1/4”, 3/8”, 1/2” BSP and NPT and Other Thread on Request
Pressure Range1.6 to 210 kg/cm² and Other Ranges on Request
Options2-Way, 3-Way, Both Male and Female, with Vent Hole

Made According to the Required Arrangement

Our standard available pressure range is from 1.6 to 210 kg/cm², while other pressure ranges can be discussed on request. Pressure alone shouldn't decide the complete product selection. Construction material, thread type, connection arrangement and required configuration also need to be considered together.

With more than 20 years of experience in industrial and instrumentation products, we understand that even a small component can have several possible configurations. We follow suitable manufacturing methods and pay attention to the required product details during production. This helps us work according to the customer's stated requirement without adding unnecessary assumptions about the application.

If you're looking for Gauge Cock manufacturers in Ahmedabad, share your required material, thread connection, pressure range, 2-way or 3-way configuration, male or female arrangement and quantity with us. We'll review the details against our available Gauge Cock range and discuss other requested options where applicable. Send us your enquiry for product information and quotation.
