Monifold Valves Details

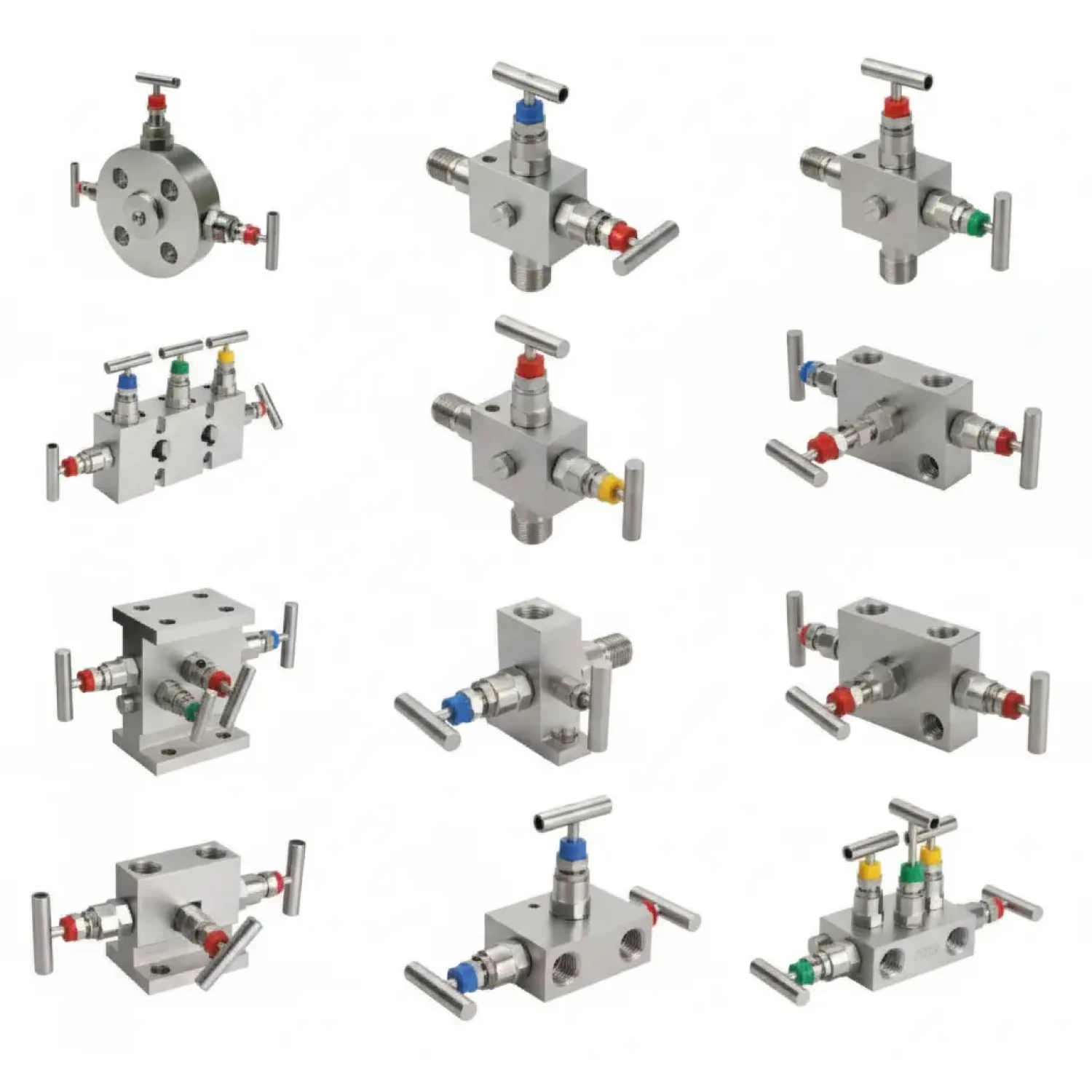

When several flow paths need to be managed through one valve arrangement, the configuration of the manifold becomes an important part of product selection. We manufacture and supply Manifold Valves in Ahmedabad in 2-way, 3-way and 5-way types for different instrumentation requirements. Our available range covers ‘T’ Type, ‘R’ Type and ‘H’ Type patterns, giving customers different options according to their piping and connection arrangement.

Multiple Configurations in One Product Range

We manufacture Manifold Valves in Pipe-to-Pipe and Pipe-to-Flange designs. BSP, NPT and Tube End connections are available, while the offered sizes include 1/4” and 1/2”. A 1/4” drain valve is also part of the available specification. These options make it easier to select the required configuration based on the actual instrumentation setup rather than working with one standard design.

The valve body is manufactured from Bar Stock and Forged Steel. Material choices include SS, CS and other materials on request. We offer PTFE and Metal-to-Metal bonnet packing, while PTFE and Grafoil options are available for gland packing. With more than 20 years of experience in valve manufacturing, we give proper attention to material, configuration and manufacturing details before the finished product is supplied.

Technical Specification

Type2-Way, 3-Way & 5-Way
Pattern‘T’ Type, ‘R’ Type & ‘H’ Type
DesignPipe to Pipe, Pipe to Flange
RatingUp to 10,000 psi @ 14°F to 176°F
ConnectionBSP & NPT, Tube End
Bonnet PackingPTFE & Metal to Metal
Gland PackingPTFE & Grafoil
Size1/4” & 1/2”
Drain Valve1/4”
Body StockBar Stock & Forged Steel
MaterialSS, CS and Other Material on Request

Selection Based on the Actual Requirement

Pressure rating is another important point when selecting the required Manifold Valve. Our available range is rated up to 10,000 psi at temperatures from 14°F to 176°F. The final choice should consider the required type, pattern, material, connection and working conditions. Our manufacturing team follows the required production process and checks the product before dispatch.

If you're searching for Manifold Valve manufacturers in Ahmedabad, share your required 2-way, 3-way or 5-way configuration along with pattern, size, connection, material, pressure requirement and quantity. We'll check the details against our available range and discuss the suitable configuration. Send us your requirement for product details and quotation.
