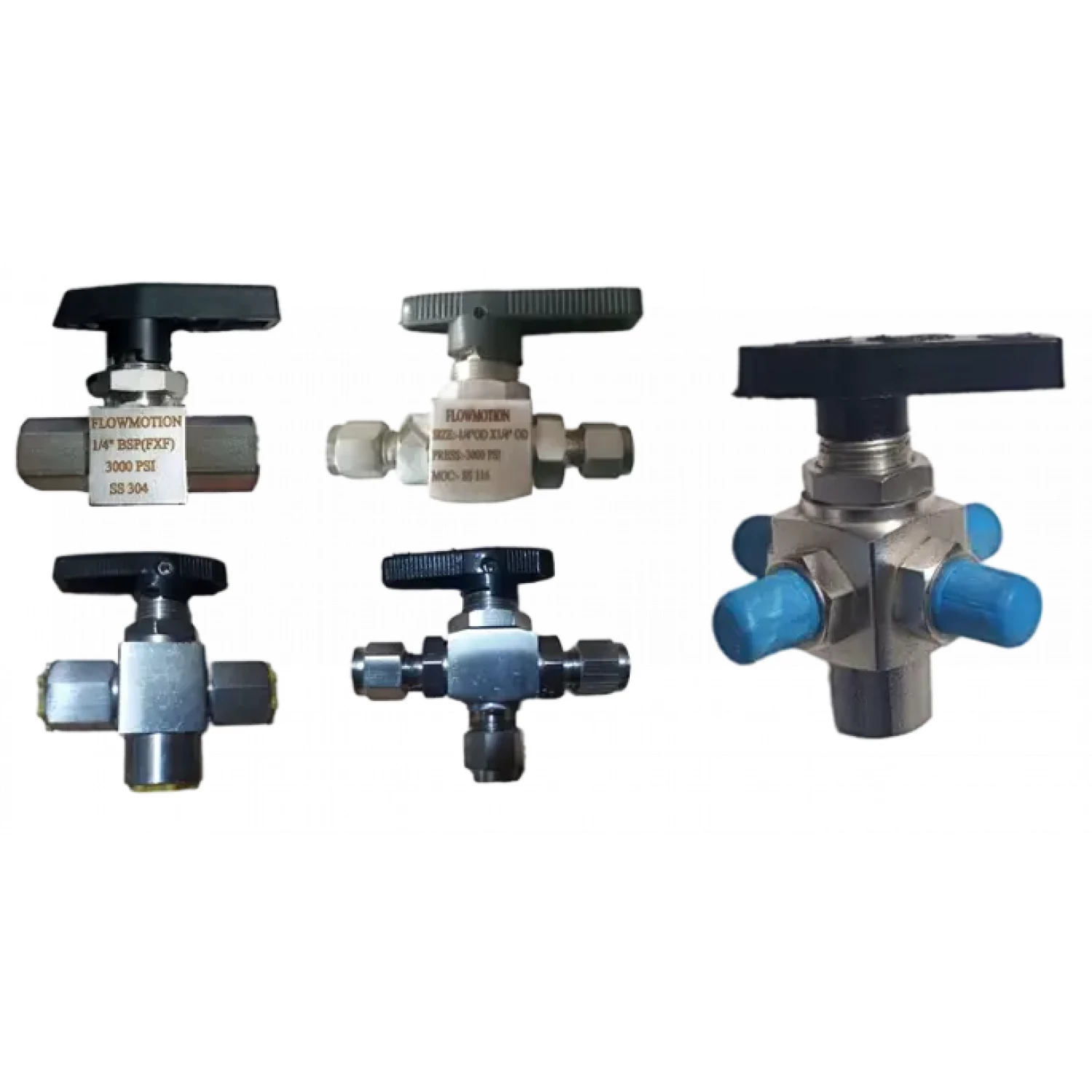

Mounting arrangement is an important point when a valve needs to become part of a panel or fixed system layout. We manufacture and supply Panel Mounting Ball Valves in Ahmedabad with Panel Mount and Base Mount options. The available range covers different valve configurations, patterns, connection types, materials and pressure ratings, allowing buyers to select the required arrangement according to their system details. With more than 20 years of experience in industrial and instrumentation valves, we understand why these details need to be checked together before the product is finalised.
Our available configurations include 2-Way, 3-Way and 5-Way Manifold types with T Type, R Type and H Type patterns. Inlet and outlet sizes range from 1/4″ to 2″. Since different piping arrangements don't always use the same connection, we offer NPT, BSP, BSPT, Socket Weld and Flanged connection options. A 1/4″ NPT drain connection with blind plug is also available as stated in the product specification.
Material options include Stainless Steel SS304, Stainless Steel SS316 and Carbon Steel. The offered maximum operating pressure options are 3000, 6000, 10000 and 15000 PSI, while the operating temperature range is from -20°C to +180°C. The suitable configuration should be selected according to the required working conditions rather than assuming that every material or design applies across the complete pressure range.
PTFE, Graphite (Grafoil) and Metal-to-Metal options are available for the seat or packing arrangement. This gives customers different choices when discussing the required valve configuration. We prefer to review the mounting method, pressure, temperature, connection and material together because each point forms part of the complete requirement.
Testing is carried out as per the supplied product details. The available specification includes a Nitrogen Test at 1000 PSI and a Hydro Test at 1.5 times the working pressure. Our team follows suitable manufacturing methods and pays attention to the required configuration during production and checking.
Customers searching for Panel Mounting Ball Valve manufacturers in Ahmedabad can discuss Panel Mount or Base Mount requirements along with the required 2-Way, 3-Way or 5-Way configuration. T, R and H pattern choices, multiple connection types and different material options allow the valve to be specified more closely to the stated requirement.
If you need a Panel Mounting Ball Valve, share the required valve type, pattern, size, connection, material, pressure, temperature, mounting option and quantity with us. We'll review these details against our available range and discuss the suitable configuration. Send your enquiry for product information and quotation.
