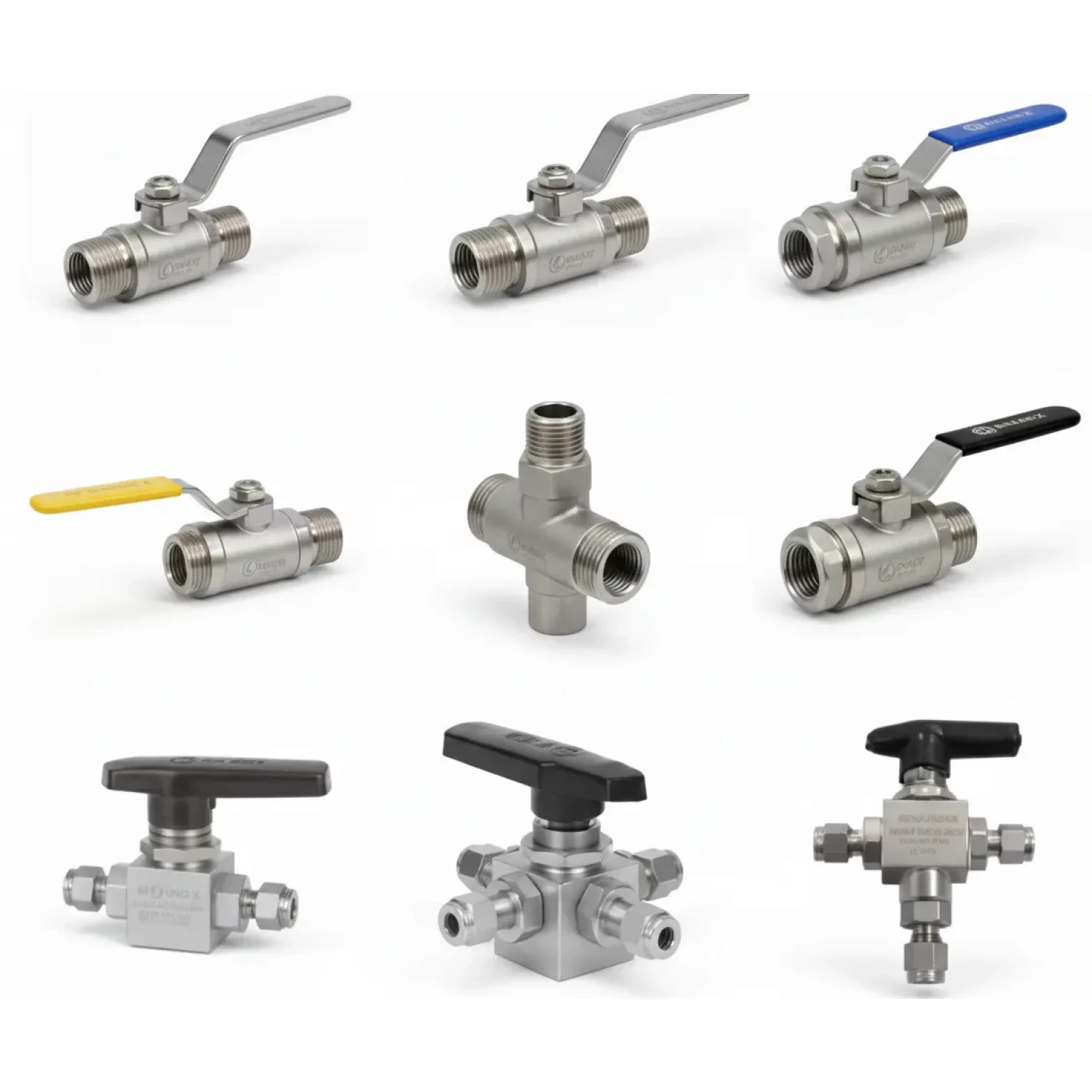

Different piping and instrumentation arrangements call for different valve body designs, pressure ratings and thread connections. We manufacture and supply Ball Valves in Ahmedabad with Square Body and Round Body designs to meet such requirements. Our range is available in sizes from 1/4” to 2”, with different material and connection choices. With more than 20 years of experience in valve manufacturing, we understand that buyers need clear technical details before selecting a valve for their system.
Our Ball Valves are manufactured from Bar Stock and Forged Steel. Material options include SS, CS and other materials on request. We offer screwed connections with BSP, NPT, BSPT and UNF threads, while other thread options can also be discussed on request. This gives customers flexibility when the existing piping or equipment requires a particular connection arrangement.
Seat packing options include PTFE and PEEK. For stem packing, the valves are available with ‘O’ rings in NBR, Viton and FPM. The available pressure ratings include 3000 psi, 6000 psi and 10000 psi, with the provided temperature range from 14°F to 176°F. Selection should be made according to the required valve configuration and operating conditions.
| Design | Square Body & Round Body |
| Rating | 3000 psi to 6000 psi and 10000 psi @ 14°F to 176°F |
| Connection | BSP, NPT, BSPT, UNF & Other Thread on Request |
| Seat Packing | PTFE & PEEK |
| Stem Packing | ‘O’ Ring (NBR, Viton & FPM) |
| Size | 1/4” to 2” |
| Connections | Screwed |
| Body Stock | Bar Stock & Forged Steel |
| Material | SS, CS and Other Material on Request |
A Ball Valve isn't selected only by its size. Body design, material, pressure requirement, seat packing and thread connection can all matter while finalising the required configuration. We manufacture our valves using suitable machinery and production methods, with our team monitoring different stages of the process. Product checking is carried out before dispatch as part of our regular manufacturing approach.
Customers looking for Ball Valve manufacturers in Ahmedabad can share their required body design, size, material, pressure rating, thread type and quantity with us. We'll review the details against our available Ball Valve range and discuss other material or thread requirements where applicable. Send us your enquiry for product information, requirement discussion and quotation.
